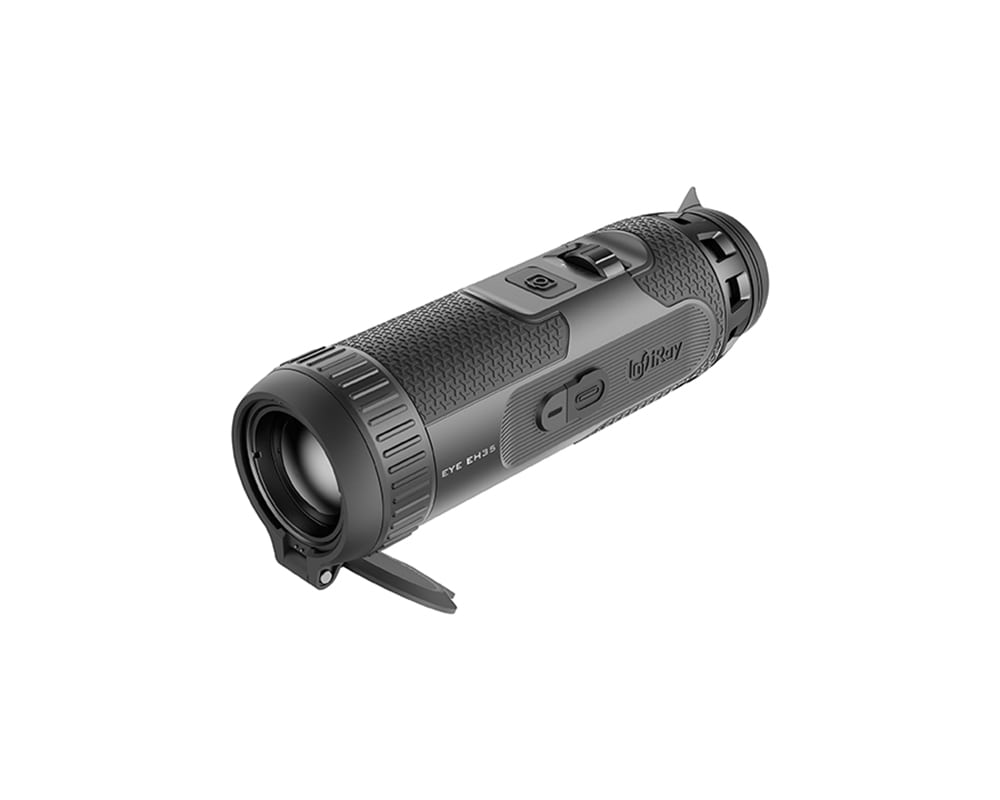

The evolution of the Eye series continues steadily, and today we present the latest generation: the Eye III series with its top model, the Infiray Eye III EH35. This series builds on the proven technologies of the Eye II series and has the clear goal of maximizing your efficiency.
In developing this new generation Infiray worked hard to create a design that is perfectly tailored to the needs of users. The result? Outstanding image quality with maximum clarity and extremely user-friendly operation!
Technical data of Infiray Eye III EH35:
- Sensor: VOx
- Sensor resolution: 640 × 512 pixels
- Sensor Pitch: 12 µm
- Sensor sensitivity: ≤ 25 mK (NETD)
- Display Type: AMOLED
- Display Resolution: 1440 × 1080 pixels
- Frame Rate: 50Hz
- Lens: 35 mm
- Aperture: 1.0
- Field of view: 12,5° × 10°
- Field of view at 100 m: 21 m
- Magnification: 2,0x ~ 8x
- Digital zoom: 1x, 2x, 4x
- Detection Range: 1800 m
- Internal Memory: 32 GB
- WLAN (Wi-Fi): Yes
- App support: yes
- Photo Recording: Yes/Video Recording: Yes/Sound Recording: Yes
- Image modes: 5 color palettes
- Protection Class: IP67
- Diopter adjustment: -3 ~ +6
- USB interface: Type-C (5V 2A)
- Power Supply: Internal Battery
- Battery: Li-Ion 4,2 Ah, 3,6 V
- Battery life: max. 8 hours
- Size: 200 × 54 × 54 mm
- Weight: 480 g
Technical characteristics of the Infiray Eye III EH35
| Battery life |
8 hours |
| frame rate |
50 Hz |
| detection distance |
1800 m |
| digital zoom |
1x, 2x, 4x |
| Display resolution |
1440 1080 x pixels |
| Display type |
AMOLED |
| application |
Forest, field & woodland |
| Weight |
480 g |
| Basic magnification |
2 |
| rangefinder (LRF) |
No |
| lens |
35 mm |
| sensor resolution |
384 x 288 |
| Sensor coating |
VOx Pixel |
| Sensor pitch |
12 um |
| Sensor sensitivity |
< 25 mk |
| field of view |
12,5 ° |
| Field of view width |
21 m at 100 m |
| removable battery |
no |
