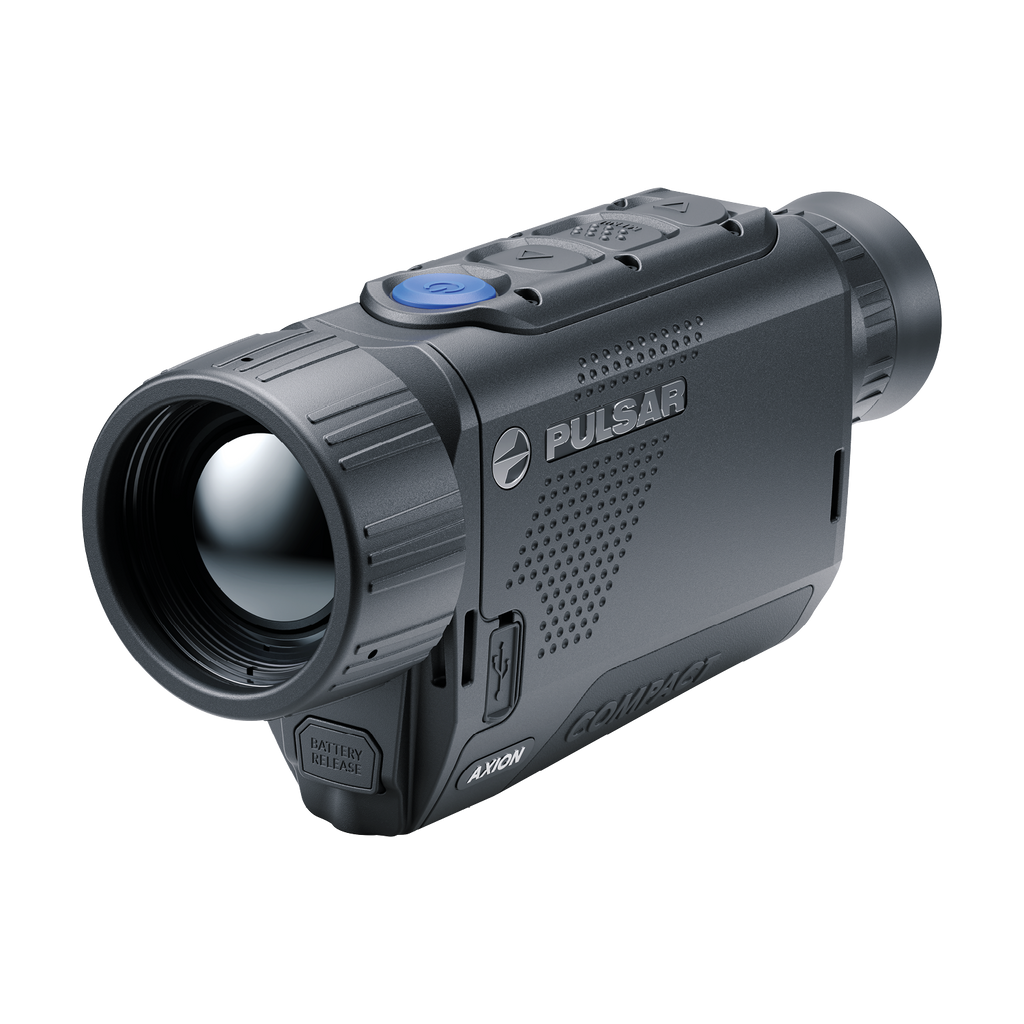

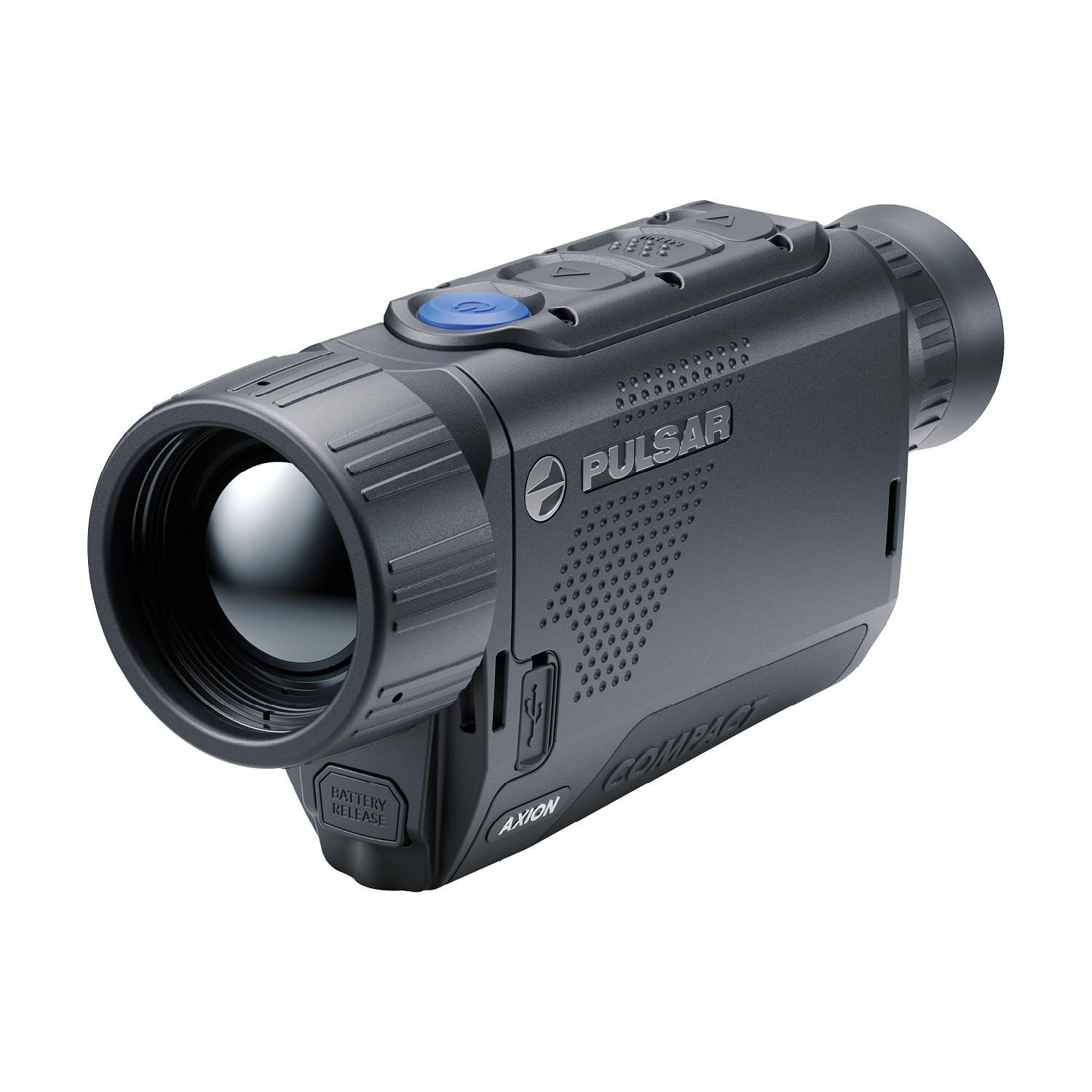

The Pulsar Axion XQ19 Compact is an entry-level thermal monocular offering reliable thermal performance and advanced features at an unbeatable price point. Designed for compactness and portability, it provides superior value for hunters.
Main specifications
Sensor
@ 17 µm 384x288
Objective lens
F19 / 1.0
Magnification, x
1.5 - 6 (x4 digital zoom)
FOV (HxV), degrees
19.5 x 12.3
FOV (HxV), m@100m
34.7 x 21.5
Diopter Adjustment, D
+4/-5
Detection range
750
Sensor Type
uncooled
Resolution, pixels
384x288
Pixel pitch, µm
17
Sensor NETD, mK
< 25
System NETD, mK
< 18
Frame rate, Hz
50
Optics
Objective lens
F19 / 1.0
Magnification, x
1.5 - 6 (x4 digital zoom)
FOV (HxV), degrees
19.5 x 12.3
FOV (HxV), m@100m
34.7 x 21.5
Diopter Adjustment, D
+4/-5
Eye relief, mm
14
Display Type
AMOLED
Resolution, pixels
640x400
Range performance
Detection range, m
750
Video recorder
Video / photo resultion, pixel
960х600
Video / photo format
.mp4 / .jpg
Build-in memory, GB
64
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IPX7 (waterproof)
Operating temperature range, °С
-25 – +40
Connections and compatibilities
Mount type
1/4" socket
Supported application
Stream Vision 2
Power supply
Output voltage, V
3.0 – 4.2
Battery type
APS 3 Li-ion Battery Pack
Capacity, mAh
3200
Operating time on battery pack, h
at t=22°С
8
External power supply, V
5 (USB Type C)
Weight & size
Body material
Aluminum alloy
Dimensions, mm
134.5х38х71
Weight, kg
0.25 (without battery)
