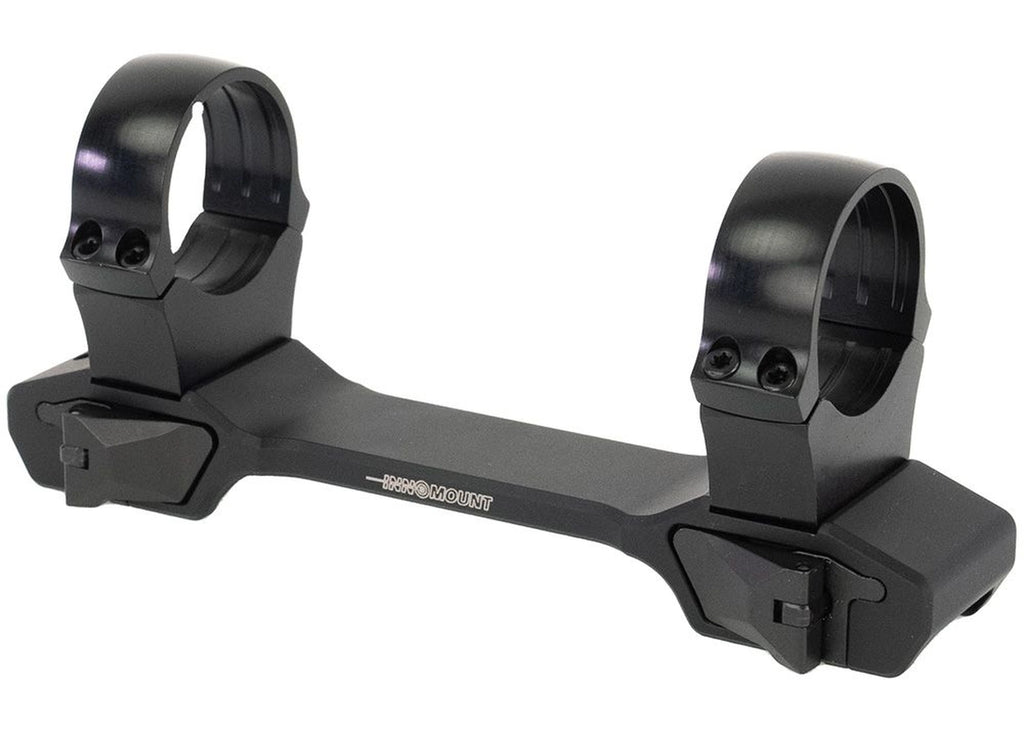

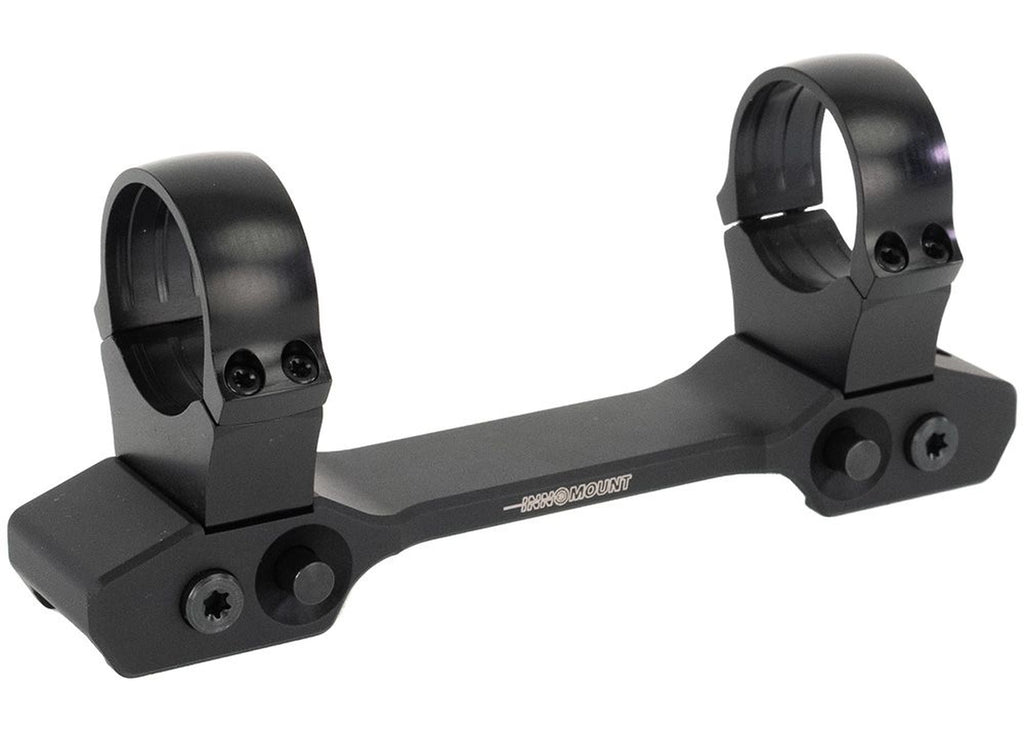

The INNOMOUNT QD quick-release mount is equipped with two retractable locking levers. The advantage lies in the simple, quick and almost tool-free operation. After mounting and dismounting, repeat accuracy is guaranteed if the clamping forces are set correctly. Two thumb-operated push buttons allow the locking levers, which are recessed to prevent accidental release, to be operated and opened.
| QD - Quick Detach |
| Construction height |
17mm (+3) |
| Ring diameter |
30mm |
| Ring width |
15mm |
| Ring spacing |
81mm |
| Distance between clamping axes |
110mm |
| Weight |
150-180g depending on version |
| Material |
high-strength aluminum / tempered steel |
| Total length |
142mm |
